Description

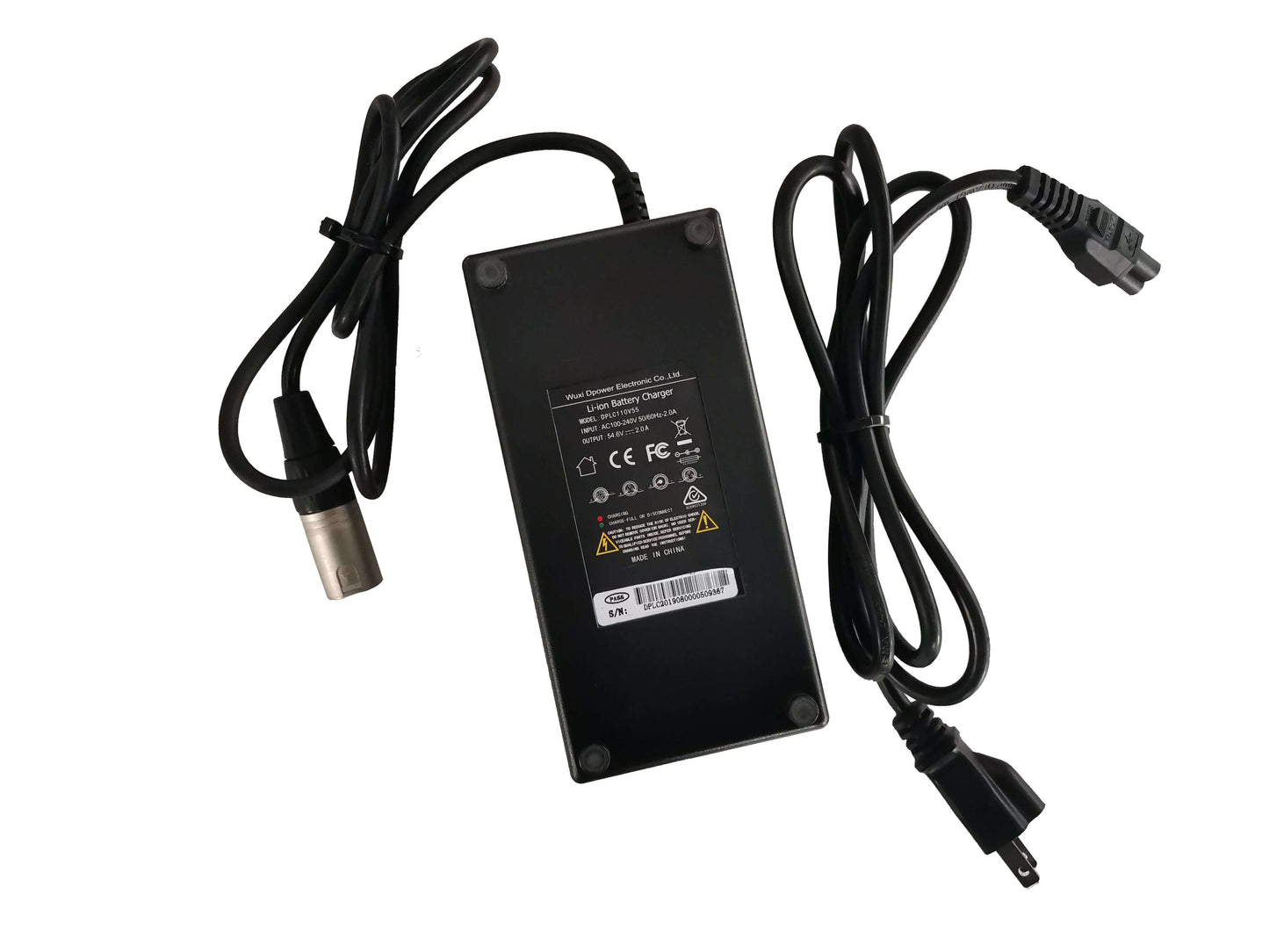

This is an original lithium battery charger for Hammer, Fat 20 48V. The charger case is made of PS/ABS material, high-temperature resistance, fire retardant, safe and durable, and also helps heat dissipation.

FEATURES

• Compatibility：Hammer, Fat 20 48V.
• Input Characteristics :

          Nominal Voltage: 100-240VAC Variation Voltage: 90-264VAC

          Nominal Frequency: 50-60Hz, Variation Frequency:47-63Hz

          Current: 2.0A

• Output Characteristics:

          Voltage:DC 54.6V Current: 2.0A

• Indication Light: red light when charging, green light when fully charged.
• Power Cord: 5-inch length.
• Charger plug: Common 3 pin XLR connector.
• Protection ：Short Circuit Protection, Overcurrent Protection, Over Voltage Protection, Battery polarity error protection.

NOTE

• Please first connect the plug to the battery, and then connect the charger to an AC outlet.
• When the battery is charging, it is normal that the charger is getting hot.
• Specifically designed for lithium batteries, not for lead-acid batteries.
• Do not operate the charger if damaged.
• The charger is only suitable for 48V batteries and not for 36V batteries or lower.
• We send them to you by USPS, please write the right shipping address.
