Elevate your driving experience with KUAFU.
CLICK ONProduct DescriptionKUAFU Stereo Radio Double Din Install Dash Kit Compatible with 2006-2009 Dodge Ram Pickup. please confirm your truck model and year before purchasing.
product detail presentation
Color: Silver with Slate Gray.ABS Material.
Replacement for part number GNT56215007.
It can not only enhance the beauty of the car but also bring you an experience.
You can change your old car dash into standard Double din housing.
our Bezel does not come with cigarette lighters or air vents.
It'

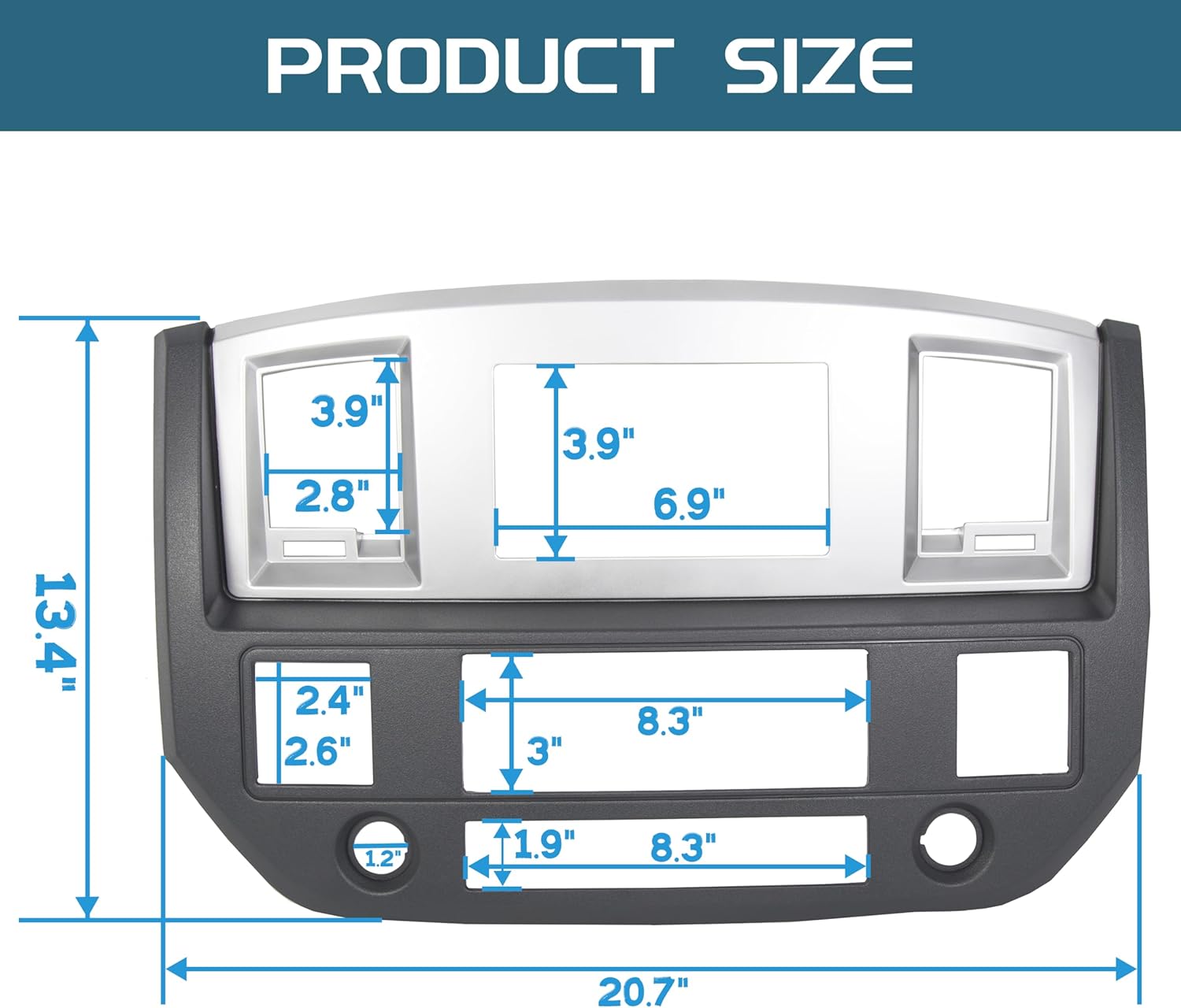

- s size is shown in the picture, when you buy it, please check if it is suitable for your car.

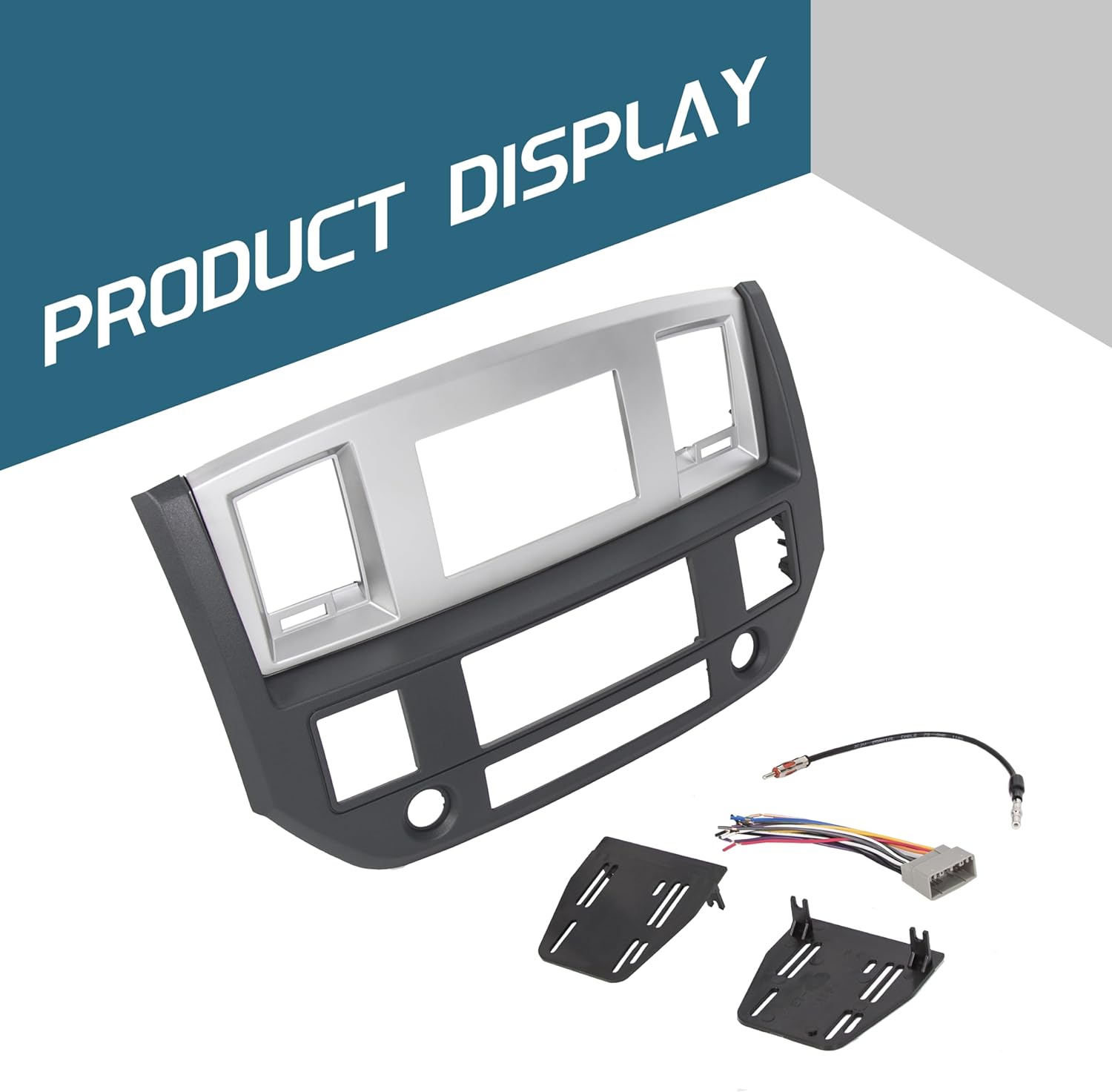

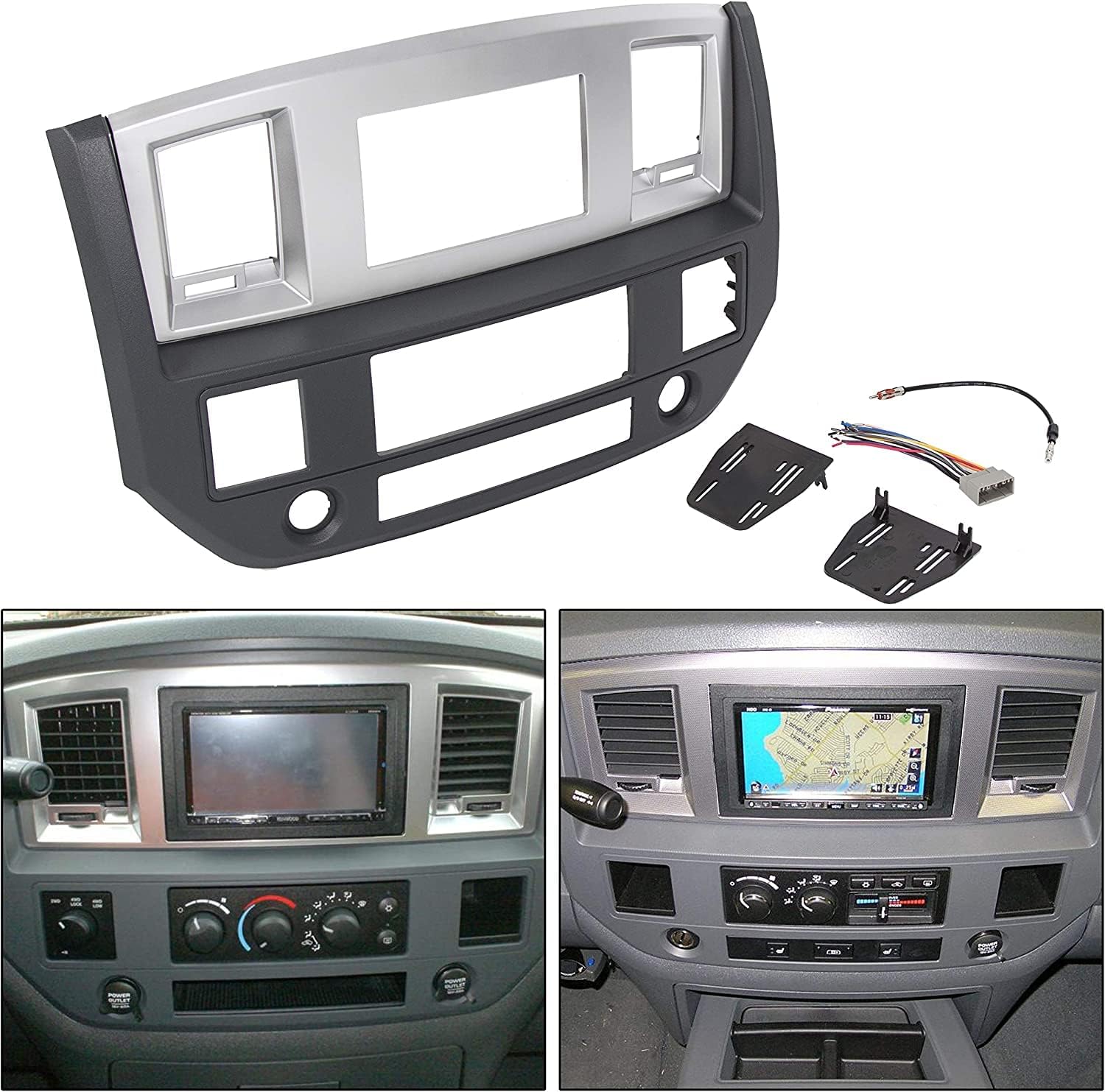

Package Included: Without Installation Guide. Only included Bezel, Standard wiring harness and Antenna Adapter (As picture shown).
Fitment: Compatible with 2006-2009 Dodge Ram Pickup Truck. Replacement for GNT56215007. Please confirm the vehicle model before purchasing

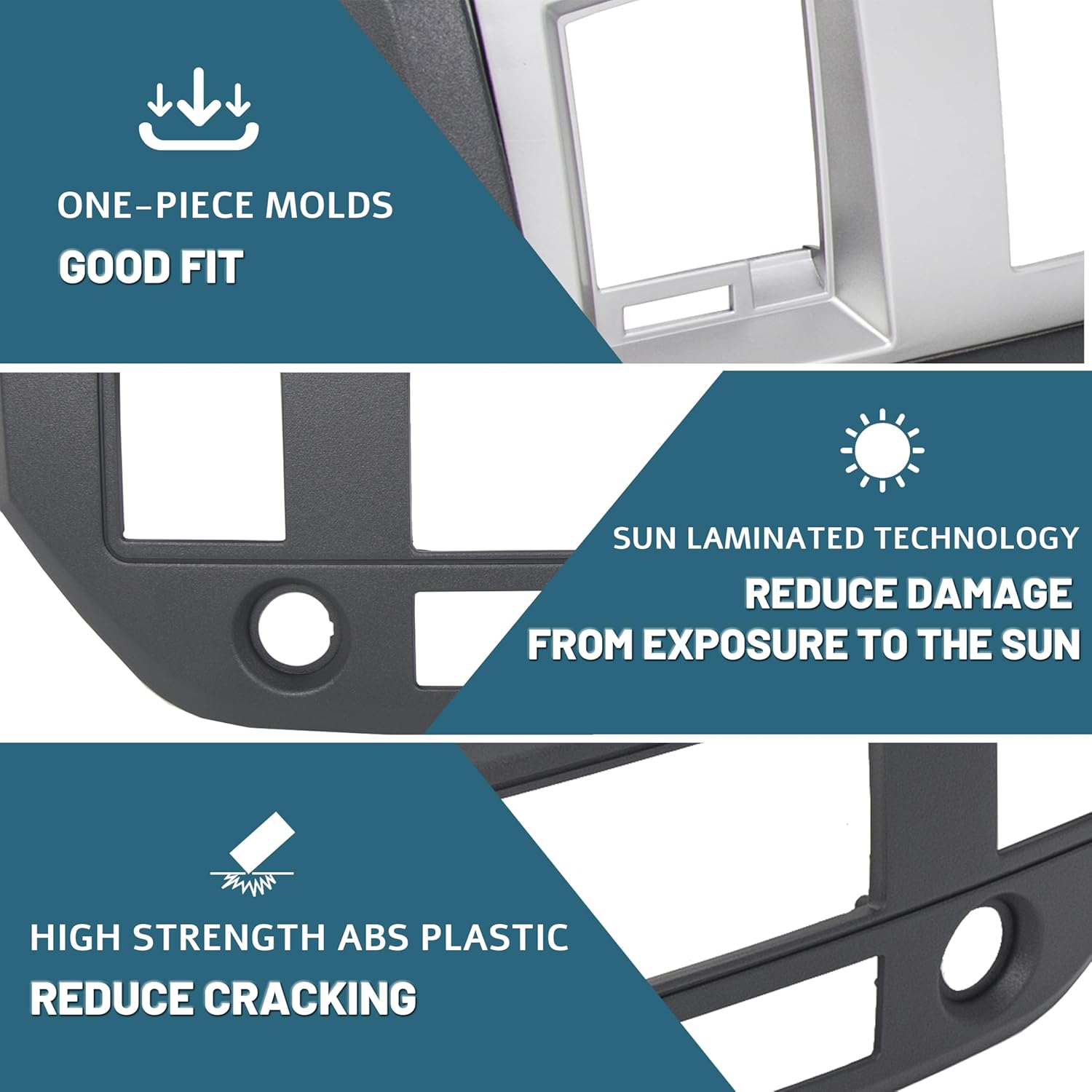

Features: Used to replace worn Double din housing that have been damaged before. Made of good ABS plastic, more durable. The silver and slate gray exterior enhances the car' - s aesthetics. In addition, it can bring you an excellent driving experience. (Our bezels did not come with a cigarette lighter or vent)
Package: Includes only bezel, standard wiring harness and antenna adapter (as shown). There is no installation guide
Wiring harness Color Code description 1: Yellow - 12V Constant - Red - 12V Accessory
- Brown - Mute/ Not Used
- Black - Ground
- Black with White Stripe - Factory Amplifier Ground
- Blue - Power Antenna/ Factory Amplifier Remote Turn On
- Blue with White Stripe - Factory Amplifier Remote Turn on
- Orange - Dash Light Dimmer/ Illumination
- Orange with White Stripe - Dash Light Dimmer/ Illumination
Wiring harness Color Code description 2: Gray - Right Front Speaker (+) - Gray with Black Stripe - Right Front Speaker (-)
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
