Suspension front Fork for 20 folding fat bikes

SKU: BA-001 Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

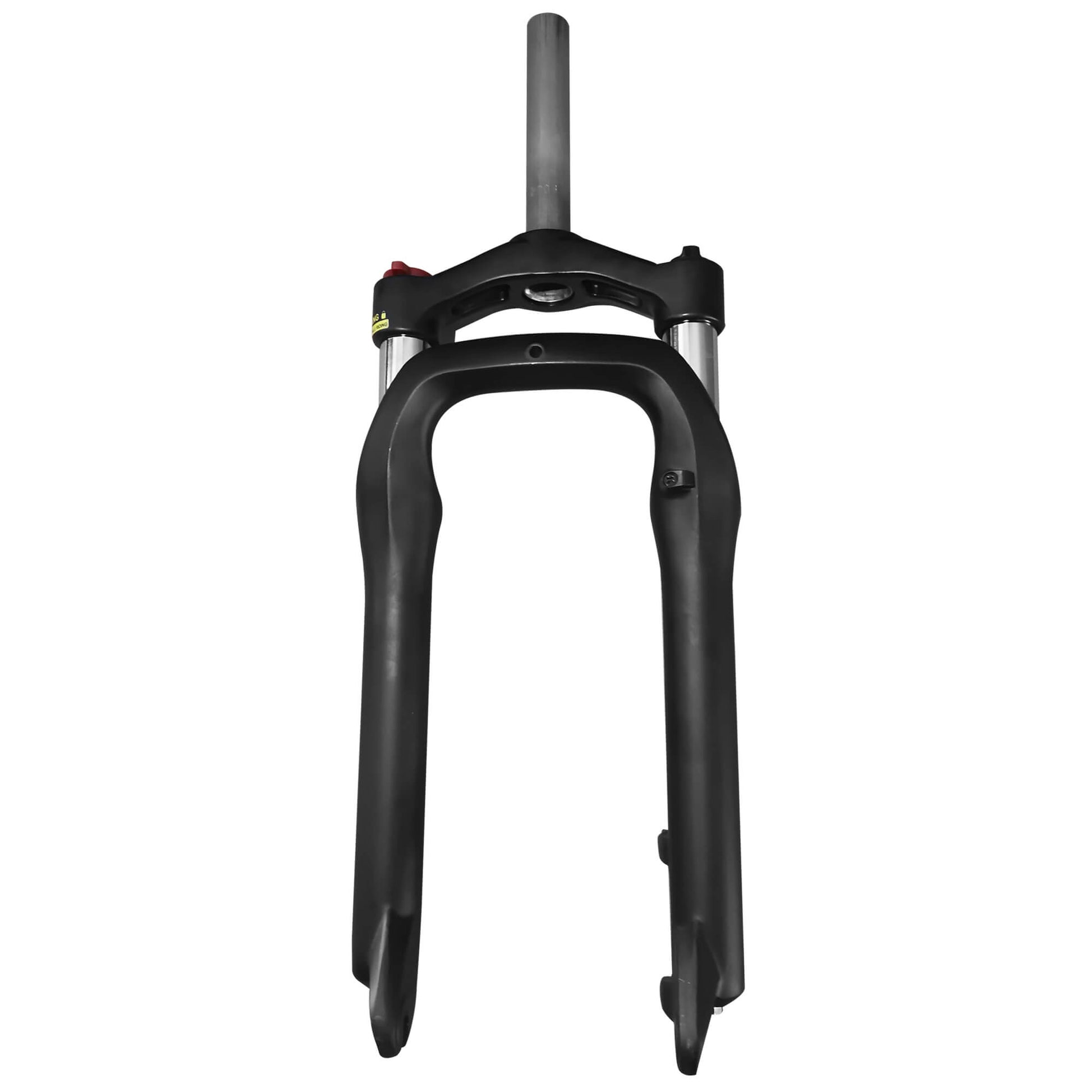

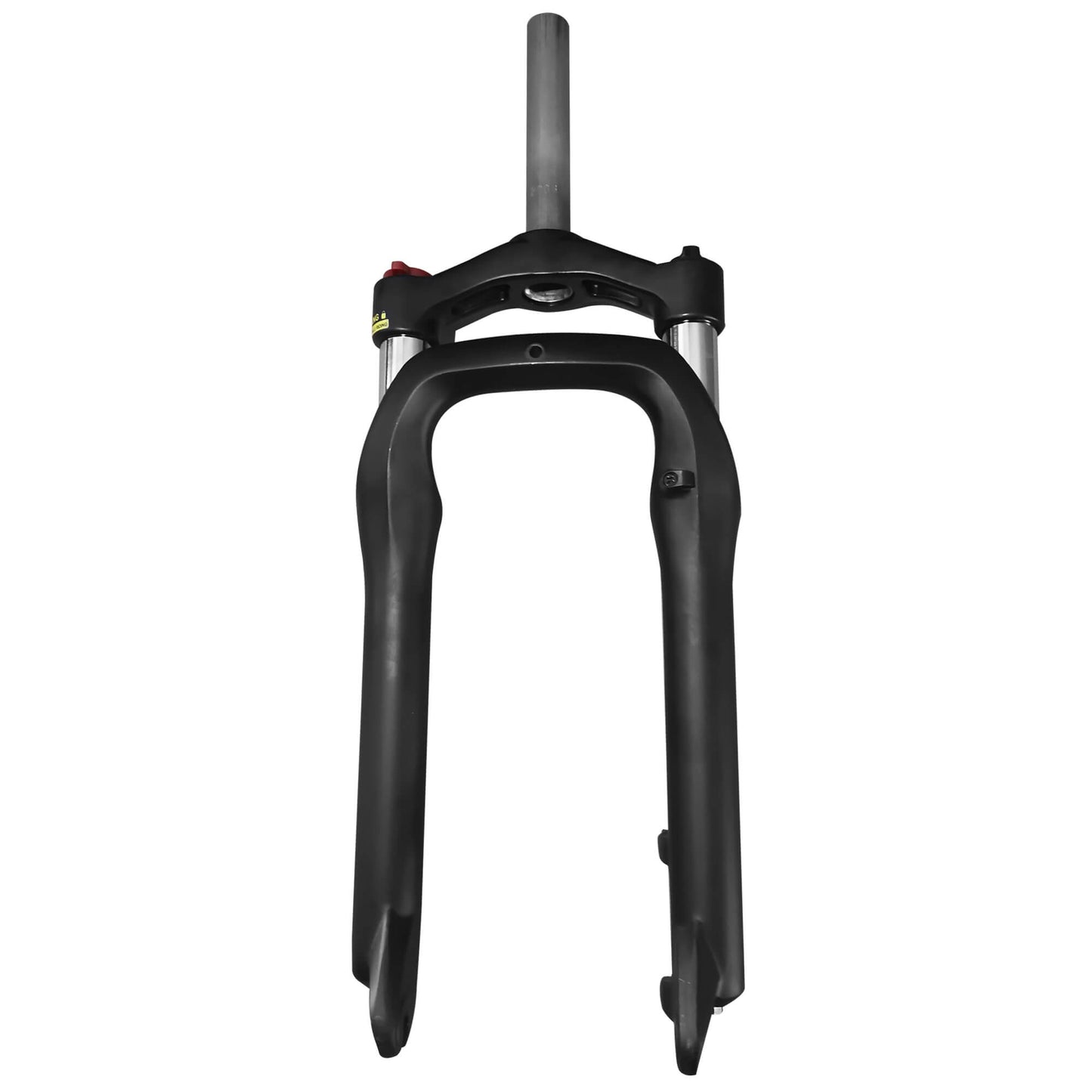

Suspension front Fork for 20" folding fat bikes

$95.00

Introductions:

It is a high-performance oil pressure spring suspension fork, fit for Ecotric Fat tire 20 36V(FAT20810), Fat tire 20 48V(FAT20S900), and Dolphin. The two switches in the hydraulic spring system can let you adjust the comfortable air pressure value according to the weight and road conditions. The fork-shaped bridge design makes the outer tube more stable and sturdy, effectively preventing the shaped tube from dust. It has great wear resistance, lubrication, and rebound, which can greatly improve your riding experience in practice use!



Compatibility:

Fat tire 20 36V(FAT20810), Fat tire 20 48V(FAT20S900), Dolphin

Descriptions

Color: 75% Matt Black

Frame Material: Aluminum alloy

Wheel Size: 20 Inch

Item Weight: 7.9 Pounds

QR: 9mm

Travel: 90mm

Crown Race: 30.0mm/Straight

Steerer tube length: 220mm

Steerer tube Diameter: 28.6mm (1-1/8” Thread-less)

Steerer tube Inner diameter: 25.4mm

Front Hub Spacing: 135mm

Package Dimensions : 31 x 10 x 4 inches;


Note:

If you have any problems, please contact us(service@ecotric.com) and we will reply to you within 24 hours.

Due to different measurement methods, it is normal for the data to have a slight error.

The product only applies to disc brakes.

Customer Reviews

Based on 30 reviews
93%
(28)
3%
(1)
3%
(1)
0%
(0)
0%
(0)
S
S.T.
A must have for the streets of NYC.

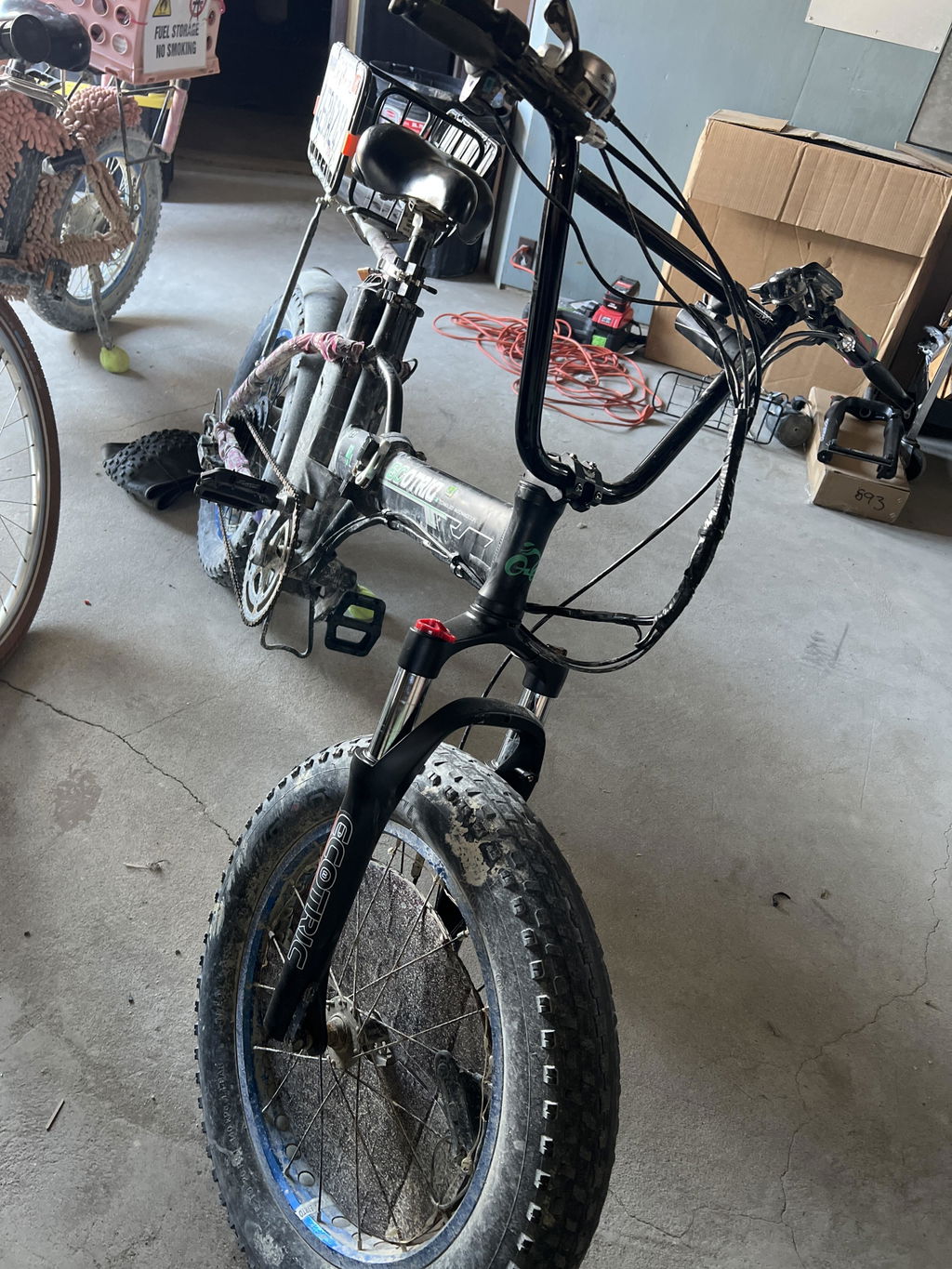

Don’t look at this as an item that only necessary for off road, or rough riding. This is a must for NYC street. I rode for about a year without it because it wasn’t in stock. I put it on, and there was a noticeable difference the first ride with it. The install is easy, same as installing the factory stock when you unpacked the bike. Bang for the buck is big also. Compare getting and installing a front suspension fork on other comparable bikes; or even the cost of getting a comparable bike with the suspension fork standard.

Overall, I would highly recommend this accessory.

P
P.
Great addition

The suspension fork was a great addition to an already excellent e-bike. I take the bike on trails and found the ride a little rough but now with the new front shocks it's improved the ride a lot. The front brake cable is stretched pretty tight but I am still able to fold the handle bars down. Highly recommend adding the suspension fork.

R
R.
Great!

Arrived quickly, easy install and works great.

D
D.
Suspension Fork for 20" Fat Tire Bike

Great product. Good Quality. Easy to install! Highly recommend it.

c
c.G.
Need help putting this on me lectric xp! Please help

So I just bought this for the lectric xp but the steering tube only pops out about an inch and I can't figure out how to get the stem yo stay on it. Oh yeah and is that a crown race that's on the bottom of this fork?
